Safety at sea: MSI warnings, refuges, MRCC

Updated October 29, 20264 min read

On this page

Safety at sea is a group of six maritime map layers: navigational warnings in force (MSI), refuges, rescue coordination centres (MRCC), ship reporting systems, all warnings in force as points, and chart corrections. MSI stands for Maritime Safety Information: warnings to mariners about temporary hazards, works, exercises and movement restrictions.

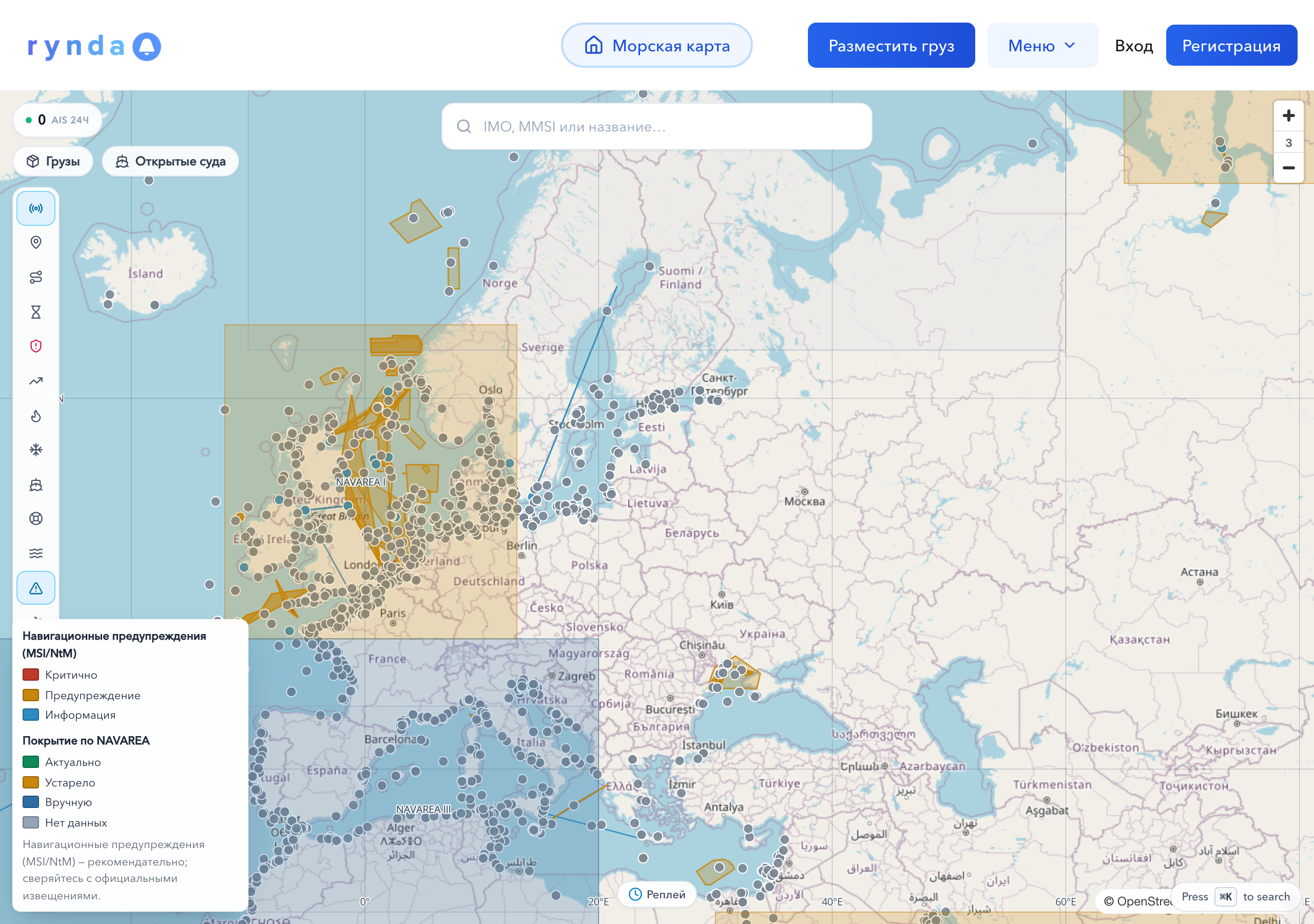

The MSI layer on the rynda map: warnings in the Baltic, the importance legend and NAVAREA coverage

Which layers the group contains

Layer What it shows What the card shows
MSI / NtM warnings warnings in force as a point, line or area, coloured by importance number, source, full text, validity
Refuges ports and anchorages with shelter, from the World Port Index country, shelter, harbour type, depths
Rescue coordination centres (MRCC) search and rescue coordination centres centre type, country, MMSI, phone
Ship reporting systems areas where a vessel must or may send reports regime (mandatory or voluntary), country, correction date
All warnings in force every warning in force as a point, including those without an area number, text, validity, link to the warning page
Chart corrections recent chart corrections as points chart, notice number, week

How to turn the layers on

  1. Open the maritime map.
  2. On a computer, click the shield button in the left rail: Safety at sea. On a phone: Map layers in the bottom bar, then Safety at sea.
  3. Switch on the layers you need. The bottom of the panel shows how many layers are on, with a Reset button.
  4. Tap a mark or an area on the map to open its card.

One tap opens one card. A refuge, rescue centre or warning mark takes priority over the port or vessel under it, so the port card does not open. The card moves clear of the layer panel and the search bar on its own.

How to read MSI warnings

The colour of a mark is the importance of the warning:

  • Critical: firing, exercises, closed and prohibited areas;
  • Warning: wrecks, obstructions, works, drifting objects;
  • Info: changes to aids to navigation, such as an unlit light or a removed buoy.

The boundaries on the map are NAVAREA zones, the areas the world's oceans are divided into for broadcasting warnings. The colour of a zone in the NAVAREA coverage legend shows how fresh its data is:

  • Live: the zone's warnings were updated recently;
  • Stale: no updates for a long time, some warnings may already be withdrawn;
  • Manual: the zone is updated from notice editions, not continuously;
  • No data: no warnings for this zone are on the map.

The warning text is shown as the source issued it. When the language of the text differs from the page language, the bottom of the card says so, for example "source text in French".

On a phone, the legend is collapsed into a single line above the map so it does not cover the map. Tap the line to expand the legend.

Limitations

  • The layers are for reference only and are not intended for navigation or course plotting.
  • Before making a decision, check the official navigational warnings and publications for your area.
  • The absence of a warning on the map does not guarantee there is no hazard: check the zone status in the coverage legend.
  • Rescue centre phone numbers are for reference. In distress, use the established GMDSS channels.

Who can use the layers

  • MSI / NtM warnings, All warnings in force and Chart corrections are available after free sign-in. Without an account, the switch opens the sign-in page.
  • Refuges, Rescue coordination centres (MRCC) and Ship reporting systems are available without signing in.
